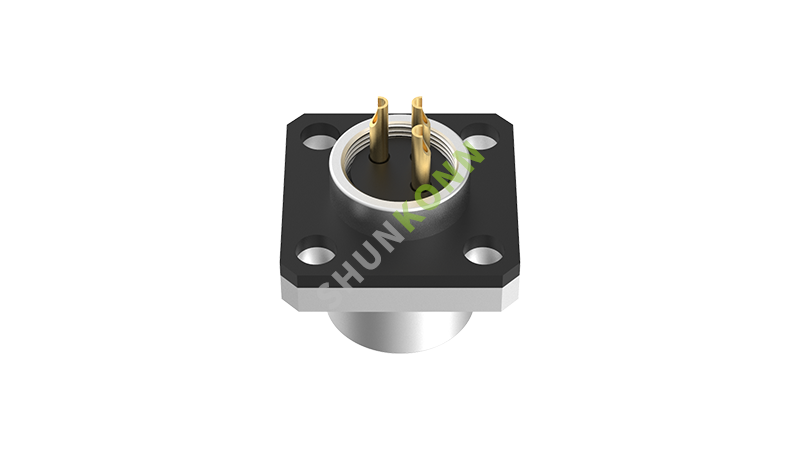

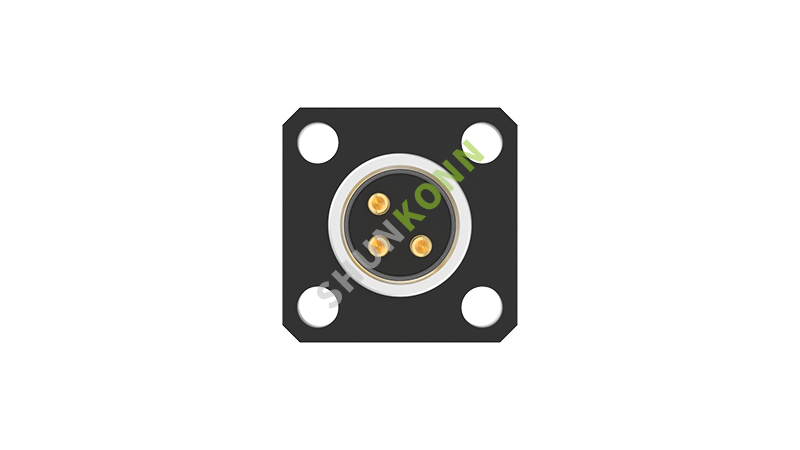

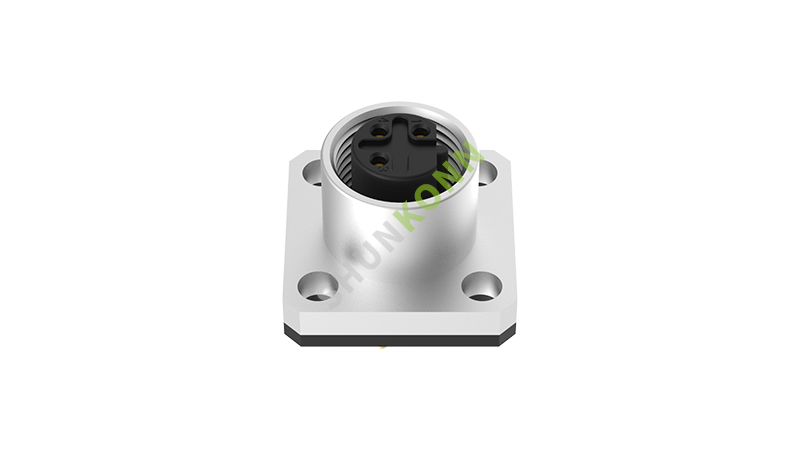

SKM12 B Series M12 B Coded Connectors Square Flange 3PIN Female Solder Type 14*14
SKM12 B Series M12 B Coded Connectors Square Flange 3PIN Female Solder Type 14*14
SKM12 B Series M12 B Coded Connectors Square Flange 3PIN Female Solder Type 14*14
SKM12 B Series M12 B Coded Connectors Square Flange 3PIN Female Solder Type 14*14
SKM12 B Series M12 B Coded Connectors Square Flange 3PIN Female Solder Type 14*14
SKM12 B Series M12 B Coded Connectors Square Flange 3PIN Female Solder Type 14*14

MC12BF-03F7LSLNS101

SKM12 B Series M12 B Coded Connectors Square Flange 3PIN Female Solder Type 14*14

The M12 B coded circular connector is a circular connector specially designed for industrial environments, mainly used in Profibus and some other fieldbus protocols.
Get a Quotation
Sample Request
SKM12 B Series M12 B Coded Connectors Square Flange 3PIN Female Solder Type 14*14
SKM12 B Series M12 B Coded Connectors Square Flange 3PIN Female Solder Type 14*14
SKM12 B Series M12 B Coded Connectors Square Flange 3PIN Female Solder Type 14*14
SKM12 B Series M12 B Coded Connectors Square Flange 3PIN Female Solder Type 14*14
SKM12 B Series M12 B Coded Connectors Square Flange 3PIN Female Solder Type 14*14
SKM12 B Series M12 B Coded Connectors Square Flange 3PIN Female Solder Type 14*14
产品详细信息

Product Introduction

替换

替换

替换
替换

替换

替换

替换

替换

替换
替换

替换

替换

替换

替换

替换
替换

替换

替换

替换

替换

替换

Technical Data
core

3PIN
Plug Type

Female Head
Dummy-proof keying

B
Terminal connection type

Solder type
Mounting type

-Rear-facing-nut
Straight Metal Assembled

IP68
Wire Gauge/Size

22AWG/0.34mm²
Operating Temperature

-40°C Tо +80°C (Fixed Installation)

-20°C Tо +80°C (flexible mounting)
Number of insertions and removals

> 500 insertions and removals
Rated voltage

250V
Rated impulse voltage

1500V
Rated current

4A
Contact resistance

5mΩ
Insulation resistance

100 MΩ
Shielding structure

non-shielded
Shell material

copper nickel-plated
Connector core

PA66 + GF
Pollution class

III
Flame retardant grade

UL94 V0
Industry Standard

IEC61076-2-111
