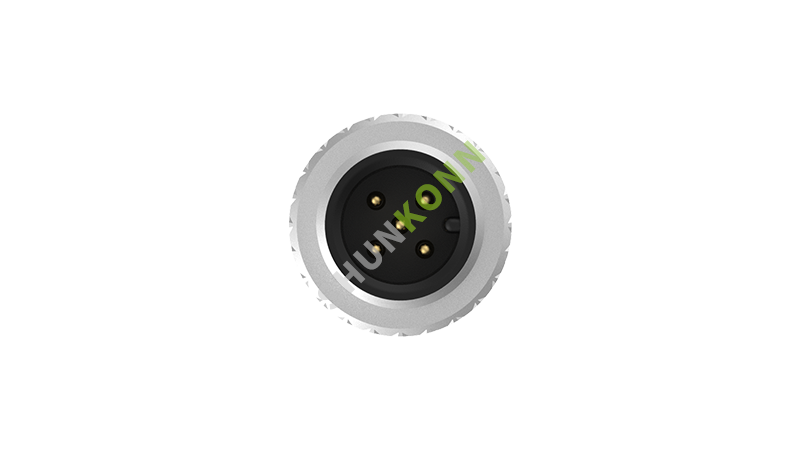

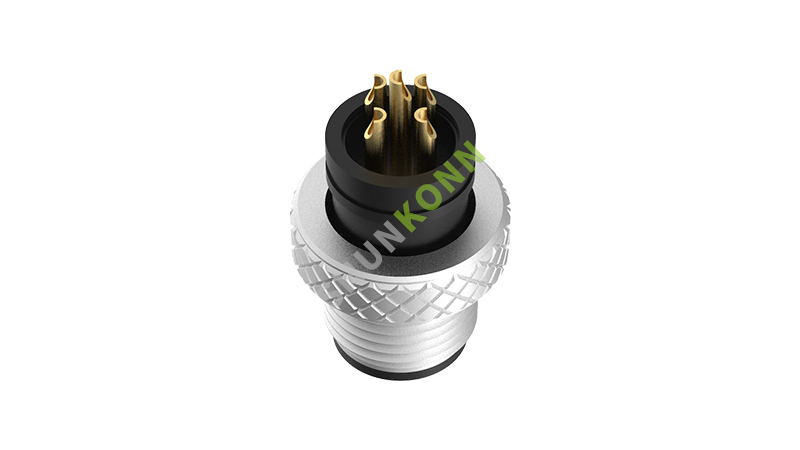

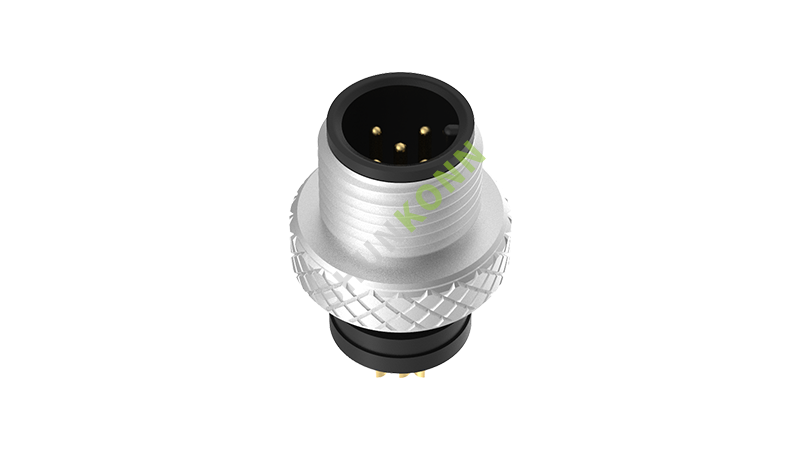

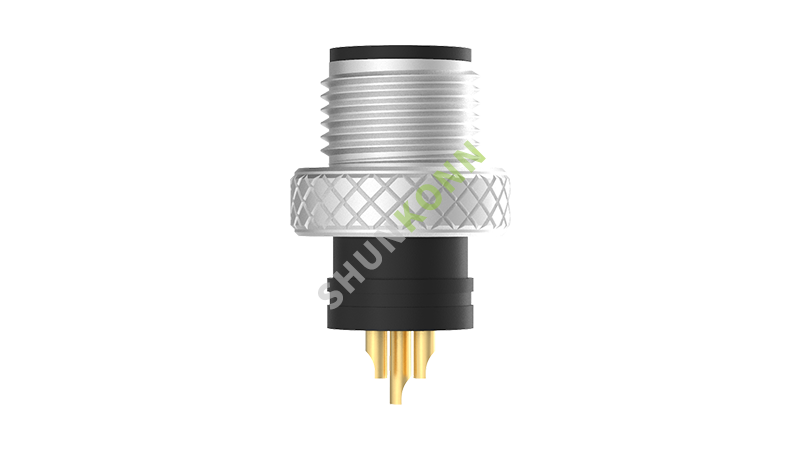

SKM12 A Series M12 A Coded Connectors Regular Overmolded 5PIN Male Solder Type M12*1
Product Code : MC12AM-05N5LSLSS101
Product Info :
The M12 pre-cast cable connector is an industrial connector that is widely used in complex industrial scenarios due to its high protection, reliability and easy installation.
Product Specification
Number of pins/holes core
5PIN
Plug Type
Male connector
Dummy-proof keying
A
Terminal connection type
Solder type
Mounting type
Regular Overmolded
Protection Rating
IP68
Wire Gauge/Size
22AWG/0.34mm²
Operating Temperature
-40°C Tо +80°C (Fixed Installation)
-20°C Tо +80°C (flexible mounting)
Number of insertions and removals
> 500 insertions and removals
Rated voltage
60V
Rated impulse voltage
1500V
Rated current
4A
Contact resistance
5mΩ
Insulation resistance
100 MΩ
Shielding structure
shielded
Shell material
copper nickel-plated
Connector core
PA66 + GF
Pollution class
III
Flame retardant grade
UL94 V0
Industry Standard
IEC61076-2-111
