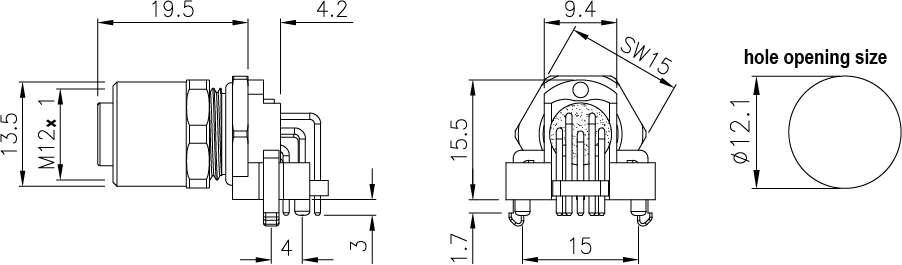

SKM12 A Series M12 A Coded Connectors Plate Rear Mount 4PIN Female Plug plate type M12*1

M12 Circular Connector Design Features

Standardized design: The M12 connectors comply with international standard IEC 61076-2-101, ensuring interchangeability and compatibility between different manufacturers.

Standardized design: The M12 connectors comply with international standard IEC 61076-2-101, ensuring interchangeability and compatibility between different manufacturers.

Protection level: IP67 or higher protection level can effectively prevent dust, water and other pollutants from entering in harsh environments.

Vibration resistance: Thread locking mechanism is used to ensure stable electrical connections can be maintained under vibration and impact conditions.

Coding diversity: Provides various encoding types such as A, B, C, D to avoid misinterpolation and adapt to different application need

Electrical performance of M12 circular connector

Transmission capability: Supports signal transmission over Ethernet connections up to 1 Gbps, while also suitable for DC power connections, making it an ideal choice for general-purpose sensors, actuators and IO-Link devices.

Voltage and Current Rating: Depending on the application scenario, the A-encoded connector can support voltage ranges from 30V to 250V, and current capacity from 1.5A to 4A.

Durability: The high-quality brass or phosphorus copper terminals have been solid gold-plated, with strong oxidation resistance, ensuring a plug-in and unplugging life of more than 500 times.

M12 circular connector application field

Industrial automation: widely used in the connection of sensors, actuators, I/O modules and other equipment in automated production lines to ensure the stability and reliability of data transmission.

Process control: used to connect temperature transmitters, pressure transmitters and other instruments to achieve accurate monitoring and control of the production process.

Transportation: It can be used to connect on-board electronic equipment in automobile manufacturing to ensure the stable operation of the vehicle system; it can also be used to connect simple sensors and control components in rail transit.

Medical equipment: The power supply and signal transmission of high-precision equipment such as monitors and medical robots requires extremely high reliability and stability of the connector.
